601-D25X 5MP Ver

601-D25X 5MP Ver

$379.99

  • [25x Superior Optical Zoom] – Get closer and clear view of far-away subjects with Sunba 601-D25X’s strong 25x optical zooms, day and night. You are able to see up to 1000ft away from the camera with a switchable low beam/high beam LED set at night vision in response to different levels of zoom.
  • [Outdoor & Built-in Mic] – Industrial-level waterproof shell with an operating temperature rating at -4~140 °F to tackle extreme weathers. The camera is equipped with a 1/2.8″ Sony IMX 335 Starvis Sensor and delivers 5MP@20fps with built-in microphone.
  • [Power over Ethernet & DC12V] – PoE means running one Ethernet cable to deliver both network and power signals with a 802.3at (aka.,PoE+ at least 25W single port) adapter. For this camera, it’s recommended to use 60W/65W high power PoE+ injector to ensure the microphone is sufficiently powered. The camera can also be powered with standard DC12V4A adapter, and supports H.265 HEVC codec with reduced bandwidth (on Blue Iris, VMS Client or Sunba H.265 NVR only).
  • [5MP Remote Live View & Remote Control] –This camera can perform 360 degrees endless rotation and can tilt 90 degrees downward and have additional 15 degrees upward (against conventional dome cameras). Smartphone (iOS/Android) p2p remote viewing & motion snapshot alert through iSunba Pro app, web access (Internet Explorer), desktop access (complimentary VMS for PC & Mac client software) available.
  • [2-Yr Warranty & Compatibility] – You are covered! 30 days return & 2-yr US Manufacturer’s warranty. Compatible with Blue Iris (SUNBA: H.264/H.265 34567), QNAP and Security Spy (in H.264 format only).

Free shipping on orders sent to the US; Other regions will have a small flat rate.

  • 30 days easy returns
  • For items with local inventory, orders will be dispatched within 2 days.
Guaranteed Safe Checkout

SUNBA – Dedicated Pan Tilt Zoom Solution Provider | Model 601-D25X Built-in Mic 5MP Version

Features

  • 5 MegaPixel (2560x1960p) @20fps, 1080p@30fps, Sony IMX 307 Starvis CMOS
  • Comes with 25x optical zoom
  • High speed pan tilt zoom with 360 degrees endless horizontal rotation, 15 degrees upward tilt and 90 degrees downward movement
  • Long range infrared LED night vision up to 1000ft (IEC-60825-1 approved)
  • Compatible with Blue Iris, QNAP and Security Spy (Mac)
  • Built-in mic
  • H.265 efficient decoding for reduced bandwidth and storage space when recording to Blue Iris, Sunba VMS and Sunba H.265 NVR
  • Power over Ethernet; Important: PoE+(802.3at) required with at least 25W output.

Setup

601-D25X is shipped under DHCP now and can be setup using iSunba app (only when you connect to the same network as smartphone). End-users can modify to static IP with VMS/IE/Device Manager tool, and later use Sunba VMS or any compatible 3rd party software/app for live view & control.

What’s Included

Manual, Camera, Wall Bracket and a complementary 12V4A Power Adapter (the PoE adapter is not included)

Power Over Ethernet (network and power in one cable)

Attention: PoE+ injector/switch required (802.3at) 25W;

Conventional PoE (802.3af) only delivers 15.4W and will cause underpower!

Power Standard

1. 25W 802.3at Standard (with PoE+ solution);
2. 12VDC 4A (if using the optional power adapter). Higher voltage will damage the unit.

Optional WiFi Connection

The camera has a built-in module to provide users with a convenient installation method (no Ethernet cable is needed).

Attention:

  • The camera only works with 2.4GHz WiFi, 5GHz or other WiFi network is not supported.
  • The camera is not battery powered, it should be powered by a DC12V adapter (comes with the camera by default).
  • If the WiFi signal is too weak, the connection will be unstable.

25X Optical Zoom

The 5MP SONY CMOS provides crystal clear details on the image. With 25X optical zoom (focal length: 4.8mm~120mm), you are equipped with eagle eyes that capture activities hundreds miles away.

Night Vision up to 1000ft

Your property will be covered by the superior night vision of Sunba 601-D25X with 10 pieces of IR LED. The infrared illumination distance can reach up to 1000ft depending on the scene. The 25X PTZ has a right array of low beam IR LED (for 1~12x) and a left array of high beam LED illuminating further objects at 13x~25x zoom level.

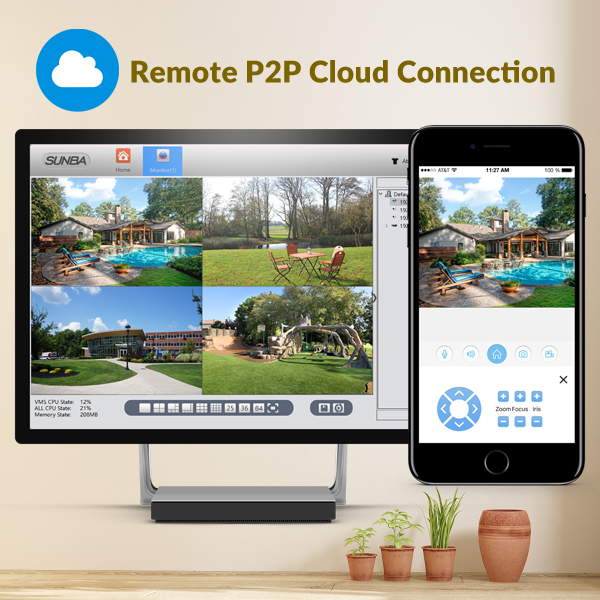

Remote View

Remotely watch live view, and control PTZ/Preset of the camera through XMEye app (iOS & Android) with motion detection snapshot stored in cloud server.

Cloud platform registration required to enable push notification.
